Build your own conversation interface

In this approach, you build a custom frontend on top of Akapulu using the Pipecat + Daily stack. Your UI talks to the realtime layer through PipecatClient, RTVI callbacks and events, and Daily transport. Live audio and video are carried by Daily, while Pipecat/RTVI drives the app-level conversation state your interface reacts to. We recommend this approach when you need custom branding, custom layout, custom controls, or product-specific UX around the live conversation. For a full working implementation, start with the Custom RTVI UI example.

​
Using Pipecat and Daily in your custom UI

import { PipecatClient } from "@pipecat-ai/client-js";
import { DailyTransport } from "@pipecat-ai/daily-transport";
import { PipecatClientProvider, usePipecatClient } from "@pipecat-ai/client-react";
import { DailyProvider, useDaily } from "@daily-co/daily-react";

// 1) Create one client + one transport for this page.
const transport = new DailyTransport();
const client = new PipecatClient({ transport });

export default function ConversationPage() {
  return (

    // 2) Pipecat provider exposes usePipecatClient() to child components.
    <PipecatClientProvider client={client}>

      {/* 3) Daily provider uses the same transport so both layers share one call. */}
      <DailyProvider callObject={transport.getCallObject()}>

        <CustomConversationUI />
      </DailyProvider>
    </PipecatClientProvider>
  );
}

function CustomConversationUI() {

  // 4) Access Pipecat client methods/events in your custom UI.
  const client = usePipecatClient();
  // 5) Access the Daily call object/state in the same component tree.
  const daily = useDaily();
  // Use `client` and `daily` in your own handlers/components from here.

}

​
Conversation lifecycle review

Your custom UI starts by calling the Akapulu connect endpoint, then using the returned room_url and token to join the Daily call with Pipecat.

​
Who is in the room

Each conversation room has two core participants:
  • Local user participant: the browser user who joins from your frontend (camera/mic input and local UI controls).
  • Bot participant: the Akapulu AI assistant that joins the same room as a remote participant
The snippet below calls the Akapulu /conversations/connect/ API:
function CustomConversationUI() {

  async function startConversation() {
    // Akapulu /connect endpoint
    const response = await fetch("https://akapulu.com/api/conversations/connect/", {
      method: "POST",
      headers: {
        Authorization: `Bearer ${apiKey}`,
      },
      body: JSON.stringify({
        scenario_id: "your-scenario-id",
        avatar_id: "your-avatar-uuid",
      }),
    });

    // Akapulu returns room_url, token, and conversation_session_id
    const { room_url, token, conversation_session_id } = await response.json();
  }
}
On the Akapulu side, this request creates the Daily room and returns the room_url and token your frontend needs.
It also returns conversation_session_id, which you can use for updates polling and session tracking.
Then join the call from your frontend with the returned credentials:
function CustomConversationUI() {
  const client = usePipecatClient();

  async function startConversation() {
    // room_url + token come from the /connect response.
    await client.connect({
      room_url,
      token,
    });
  }
}
This call is where the user joins the Daily room from your frontend.
Akapulu then continues by starting the bot runtime and having the bot join the same room.

​
Render the live video call UI

After client.connect(...) succeeds, you can render the active call UI using the Daily layer from useDaily() and the DailyVideo component.
import { useDaily, useParticipantIds, DailyVideo } from "@daily-co/daily-react";

function CustomConversationUI() {
  const daily = useDaily();

  // Get Bot participant id
  const remoteParticipantIds = useParticipantIds({ filter: "remote" });
  const botParticipantId = remoteParticipantIds[0];

  // Get local participant Id
  const localParticipantId = daily?.participants()?.local?.session_id;

  return (
    <div>
      {/* Local participant video */}
      <DailyVideo sessionId={localParticipantId} type="video" />

      {/* Bot/remote participant video */}
      <DailyVideo sessionId={botParticipantId} type="video" />
    </div>
  );
}
On macOS, Continuity Camera can be selected automatically as camera or microphone input. If the iPhone is far away or in a pocket, this can lead to a drop in speech recognition quality. If this happens, you can disconnect Continuity Camera for the session, or disable it on iPhone (Settings > General > AirPlay & Handoff > Continuity Camera).

​
Built-in RTVI events

Pipecat includes built-in RTVI events you can subscribe to in your UI for conversation behavior.
For the full list and payload details, see the RTVI callbacks and events docs. Common built-in examples:
  • RTVIEvent.UserTranscript for user transcript updates.
  • RTVIEvent.BotTranscript for assistant transcript updates.
  • RTVIEvent.UserStartedSpeaking when the user begins speaking.
  • RTVIEvent.UserStoppedSpeaking when the user stops speaking.
  • RTVIEvent.BotStartedSpeaking when bot speech starts.
  • RTVIEvent.BotStoppedSpeaking when bot speech ends.

​
Akapulu custom ServerMessages

Akapulu also sends custom events through RTVIEvent.ServerMessage for product-specific UI state and tool activity.

​
Flow node changed

  • message.type: "flow-node-changed"
  • message.node: current node/stage id in the conversation flow.
Example payload:
{
  "type": "flow-node-changed",
  "node": "intro"
}

​
Bot speaking state

  • message.type: "bot-speaking-state"
  • message.state: bot speaking state (speaking or idle).
Example payload:
{
  "type": "bot-speaking-state",
  "state": "speaking"
}

​
RAG tool event

  • message.type: "RAG"
  • message.function_name: RAG tool name.
  • message.body.query: query sent to the knowledge base.
Example payload:
{
  "type": "RAG",
  "function_name": "search_docs",
  "body": {
    "query": "How do I reset a password?"
  }
}

​
Vision tool event

  • message.type: "vision"
  • message.function_name: vision tool name.
Example payload:
{
  "type": "vision",
  "function_name": "analyze_camera_frame",
  "body": {}
}

​
HTTP tool event

  • message.type: "http"
  • message.function_name: HTTP tool name.
  • message.body: HTTP tool request body payload
Use care with sensitive values in HTTP endpoint templates. The HTTP tool event includes the full request body payload in frontend-visible RTVI messages, so avoid placing secrets in body fields. Keep secrets in headers and follow the Templates and Variables guidance.
Example payload:
{
  "type": "http",
  "function_name": "create_lead",
  "body": {
    "name": "Jordan Lee",
    "email": "jordan@example.com"
  }
}

​
Subscribe to built-in and custom RTVI events

import { RTVIEvent } from "@pipecat-ai/client-js";
import { usePipecatClient } from "@pipecat-ai/client-react";

function CustomConversationUI() {
  const client = usePipecatClient();

  useEffect(() => {
    // Built-in RTVI events
    client.on(RTVIEvent.UserTranscript, (data) => {
      // TODO: handle user transcript updates
    });

    client.on(RTVIEvent.BotTranscript, (data) => {
      // TODO: handle bot transcript updates
    });

    client.on(RTVIEvent.UserStartedSpeaking, () => {
      // TODO: handle user started speaking
    });

    // Akapulu custom events via ServerMessage
    client.on(RTVIEvent.ServerMessage, (message) => {
      switch (message?.type) {
        case "flow-node-changed":
          // TODO: update current stage UI from message.node
          break;
        case "bot-speaking-state":
          // TODO: update speaking indicator from message.state
          break;
        case "RAG":
          // TODO: show tool activity from message.function_name + message.body.query
          break;
        case "vision":
          // TODO: show vision tool activity from message.function_name
          break;
        case "http":
          // TODO: show HTTP tool activity from message.function_name + message.body
          break;
        default:
          break;
      }
    });
  }, [client]);
}

​
Build a loading display during startup

The bot and room startup process can take 10-15 seconds, so we recommend your custom UI should include a loading state before entering the live call view. During this phase, we suggest you show users:
  • a status text that reflects current setup progress
  • a progress indicator (for example, a progress bar)
  • a clear transition into the live UI once readiness is reached
The recommended source of truth for this state is the conversation updates endpoint, which returns readiness and progress fields you can map directly into your loading UX.
async function fetchConversationUpdates(conversationSessionId: string, apiKey: string) {
  const response = await fetch(
    `https://akapulu.com/api/conversations/${conversationSessionId}/updates/`,
    {
      method: "GET",
      headers: {
        Authorization: `Bearer ${apiKey}`,
      },
    },
  );

  const { call_is_ready, completion_percent, latest_update_text } = await response.json();

  return {
    // True when setup is complete and you should switch into the live call UI.
    call_is_ready,
    // Numeric progress value (from 0 to 100) you can map to a loading/progress bar.
    completion_percent,
    // Human-readable status text you can show in the loading state.
    latest_update_text,
  };
}

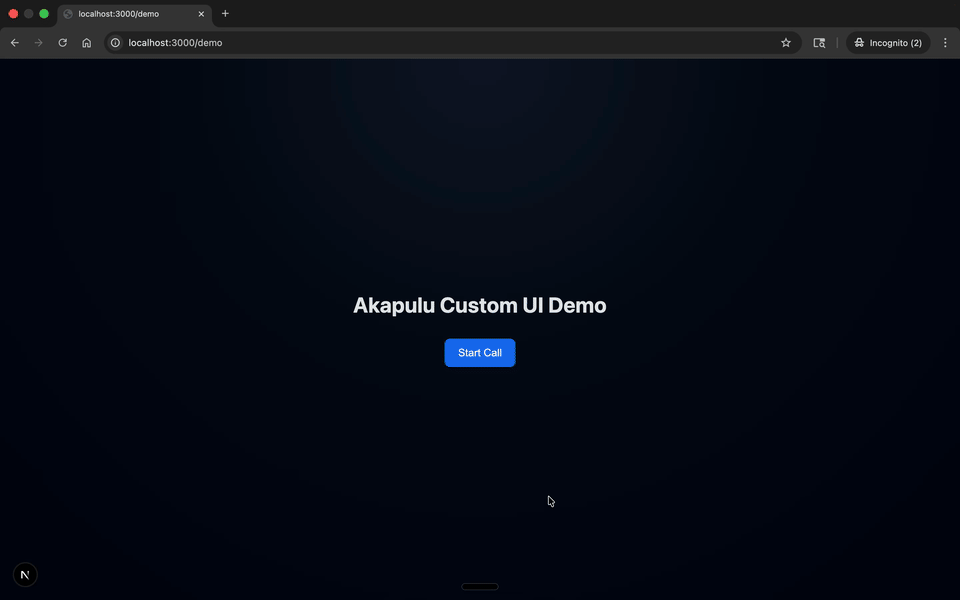

Loading progress in the custom UI demo Shown at 2x speed.

​
Recording strategy in a custom UI

After you trigger recording, there is a short initialization delay before capture actually begins. We recommend starting recording when loading progress reaches completion_percent >= 50%. This timing is usually the best balance: early enough to capture the beginning of the live interaction, but late enough to avoid recording too much startup/idle time.
function CustomConversationUI() {
  const daily = useDaily();
  const [recordingStarted, setRecordingStarted] = useState(false);

  useEffect(() => {

    // Start recording once loading progress reaches 50%.
    if (completionPercent >= 50 && !recordingStarted) {
      daily?.startRecording({ type: "cloud" });
      setRecordingStarted(true);
    }
  }, [completionPercent, recordingStarted, daily]);
}
Completed recordings are available in your Akapulu conversations page at akapulu.com/recordings.

​
Full outline snippet

Here’s a single snippet showing all the above in a single template file
"use client";

import { useCallback, useEffect, useMemo, useRef, useState } from "react";
import {
  DailyProvider,
  DailyVideo,
  useDaily,
  useParticipantIds,
} from "@daily-co/daily-react";
import {
  PipecatClient,
  PipecatClientProvider,
  RTVIEvent,
  usePipecatClient,
} from "@pipecat-ai/client-react";
import { DailyTransport } from "@pipecat-ai/daily-transport";

type ConnectResponse = {
  // Daily room URL created by Akapulu for this conversation.
  room_url: string;
  // Daily meeting token scoped for this participant/session.
  token: string;
  // Akapulu conversation ID used for polling /updates.
  conversation_session_id: string;
};

type UpdatesResponse = {
  // True when startup is done and you can switch to live call UI.
  call_is_ready: boolean;
  // Startup progress from 0-100
  completion_percent: number;
  // Human-readable status text for loading UI.
  latest_update_text: string;
};

// NOTE: we recommend moving this to a backend route to avoid exposing API Key on frontend
async function connectConversation(apiKey: string): Promise<ConnectResponse> {
  const response = await fetch("https://akapulu.com/api/conversations/connect/", {
    method: "POST",
    headers: {
      "Content-Type": "application/json",
      Authorization: `Bearer ${apiKey}`,
    },
    body: JSON.stringify({
      // Required fields:
      scenario_id: "your-scenario-id",
      avatar_id: "your-avatar-uuid",

    }),
  });

  // /connect returns room_url + token + conversation_session_id.
  return response.json();
}

async function fetchConversationUpdates(
  conversationSessionId: string,
  apiKey: string,
): Promise<UpdatesResponse> {
  const response = await fetch(
    `https://akapulu.com/api/conversations/${conversationSessionId}/updates/`,
    {
      method: "GET",
      headers: {
        Authorization: `Bearer ${apiKey}`,
      },
    },
  );

  // /updates returns readiness, progress, and current status text.
  return response.json();
}


function CustomConversationUI({ apiKey }: { apiKey: string }) {
  // Daily call object from DailyProvider.
  const daily = useDaily();
  // Pipecat client instance from PipecatClientProvider.
  const client = usePipecatClient();

  // Core session and loading state.
  const [conversationSessionId, setConversationSessionId] = useState("");
  const [statusText, setStatusText] = useState("Starting conversation...");
  const [completionPercent, setCompletionPercent] = useState(0);
  const [callIsReady, setCallIsReady] = useState(false);
  const [isConnecting, setIsConnecting] = useState(false);
  const [recordingStarted, setRecordingStarted] = useState(false);

  // Daily participant IDs for rendering the local and bot video tiles.
  const localParticipantId = useParticipantIds({ filter: "local" })[0];
  const botParticipantId = useParticipantIds({ filter: "remote" })[0];

  const startConversation = useCallback(async () => {
    // Guard against duplicate connect attempts.
    if (!client || isConnecting) return;
    setIsConnecting(true);

    // 1) Ask Akapulu to create/prepare the conversation + Daily room.
    const { room_url, token, conversation_session_id } = await connectConversation(apiKey);
    // 2) Save conversation ID so we can poll /updates.
    setConversationSessionId(conversation_session_id);

    // 3) Join the Daily room through Pipecat transport.
    await client.connect({
      endpoint: room_url,
      token,
    });
  }, [client, apiKey, isConnecting]);

  // Kick off the connect flow once the component mounts.
  useEffect(() => {
    startConversation();
  }, [startConversation]);

  // 4) Poll setup progress every 0.5s until call_is_ready is true.
  useEffect(() => {
    if (!conversationSessionId || callIsReady) return;

    const interval = setInterval(async () => {
      const updates = await fetchConversationUpdates(conversationSessionId, apiKey);
      // Use readiness to decide when to switch from loading -> live UI.
      setCallIsReady(updates.call_is_ready);
      // Use progress for bars/percent indicators.
      setCompletionPercent(updates.completion_percent);
      // Use status text as human-friendly loading copy.
      setStatusText(updates.latest_update_text);
    }, 500);

    // Always clean up interval on unmount/dependency change.
    return () => clearInterval(interval);
  }, [conversationSessionId, apiKey, callIsReady]);

  // 5) Subscribe to built-in RTVI events for speaking/transcript UX.
  useEffect(() => {
    if (!client) return;

    const offUserStartedSpeaking = client.on(RTVIEvent.UserStartedSpeaking, () => {
      // TODO: mark local user as "speaking".
    });
    const offUserTranscript = client.on(RTVIEvent.UserTranscript, (event) => {
      // TODO: append user text from event.data.text.
    });
    const offBotTranscript = client.on(RTVIEvent.BotTranscript, (event) => {
      // TODO: append bot text from event.data.text.
    });

    // Remove listeners when client changes/unmounts.
    return () => {
      offUserStartedSpeaking?.();
      offUserTranscript?.();
      offBotTranscript?.();
    };
  }, [client]);

  // 6) Subscribe to Akapulu custom ServerMessages for product-specific UX.
  useEffect(() => {
    if (!client) return;

    const offServerMessage = client.on(RTVIEvent.ServerMessage, (event) => {
      const message = event.data;

      if (message.type === "flow-node-changed") {
        // TODO: show current flow node from message.body.current_node_name.
      } else if (message.type === "bot-speaking-state") {
        // TODO: set bot speaking indicator from message.body.is_bot_speaking.
      } else if (message.type === "RAG") {
        // TODO: surface retrieval/tool activity in UI logs.
      } else if (message.type === "vision") {
        // TODO: surface vision/tool activity in UI logs.
      } else if (message.type === "http") {
        // TODO: surface HTTP tool activity in UI logs.
      }
    });

    // Remove listener when client changes/unmounts.
    return () => {
      offServerMessage?.();
    };
  }, [client]);

  // 7) Start recording once setup is underway (>= 50%).
  useEffect(() => {
    if (completionPercent >= 50 && !recordingStarted) {
      // Daily cloud recording.
      daily?.startRecording({ type: "cloud" });
      setRecordingStarted(true);
    }
  }, [completionPercent, recordingStarted, daily]);

  // Loading view shown while Akapulu is preparing the room/session.
  if (!callIsReady) {
    return (
      <div>
        <p>{statusText}</p>
        <p>{completionPercent}%</p>
      </div>
    );
  }

  // Live call view once the session is ready.
  return (
    <div>
      {/* Local user tile */}
      <DailyVideo sessionId={localParticipantId} type="video" />
      {/* Bot tile */}
      <DailyVideo sessionId={botParticipantId} type="video" />
    </div>
  );
}

export default function Page() {
  // Create one transport instance for the page lifetime.
  const transport = useMemo(() => new DailyTransport(), []);
  // Keep one stable Pipecat client instance across renders.
  const clientRef = useRef<PipecatClient | null>(null);
  if (!clientRef.current) {
    clientRef.current = new PipecatClient({ transport });
  }

  // Provider tree: Daily + Pipecat context for all child components.
  return (
    <DailyProvider>
      <PipecatClientProvider client={clientRef.current}>
        {/* Pass API key from secure config in real apps. */}
        <CustomConversationUI />
      </PipecatClientProvider>
    </DailyProvider>
  );
}
For a custom engineered implementation, see our Enterprise plan at akapulu.com/pricing.
