Scenarios are how you control assistant behavior in Akapulu. When you start a conversation, the scenario provides:
  • global role context
  • node-specific stage instructions
  • tool access (transitions, HTTP tools, RAG, vision)
  • flow logic for how the conversation moves between stages
For most real conversations, a single static prompt is not enough. The assistant often needs different instructions and tools at different moments.

​
Scenarios and conversation stages

A scenario lets you design the flow as a set of stages. At each stage, you can decide:
  • what the assistant should focus on
  • how it should respond
  • which tools it can use
As the conversation evolves, the assistant transitions between stages when appropriate. For example:
  • Interview Training Avatar: intro and rapport -> general background questions -> technical questions -> next steps
Example guidance for the LLM
  • Patient Intake Screening: intro -> data intake -> appointment booking -> Q&A -> end
Example guidance for the LLM

​
Nodes

Akapulu implements these stages using nodes. A node contains stage instructions plus the tools the assistant can use in that stage. The model can move between nodes using transition tools. Example of two connected scenario nodes Akapulu provides a drag-and-drop UI for building and connecting nodes. Node builder view showing connected nodes and tools

​
Role messages, task messages, and context management

When a conversation starts, Akapulu begins from the node labeled start node. You can change the start node in the UI by opening the node menu (three dots in the upper-right corner of the node) and clicking Set as Start. Akapulu then builds LLM context in this order:
  1. The start node’s role message is appended first.
  2. The start node’s task message is appended next.
  3. Any tool call context is appended as tools are invoked.
When the LLM transitions to a new node, that node’s role message (if set) and task message are appended to context so the assistant can continue with the correct stage instructions. We recommend defining your overall LLM persona in the role message of the start node, then using task messages in each individual node to define stage-specific behavior.

​
Create scenario walkthrough

​
Create a simple node

  1. Go to the Scenarios page.
  2. Click New.
  3. Click Add Node to create your first node.
  4. Enter a node name (for example, Greeting).
  5. Add a role message.
    • Example: You are an onboarding assistant for Akapulu.
  6. Add a task message.
    • Example: Greet the user, ask what they want to build, and keep your response concise.
The first node you create is the default start node. Each scenario has exactly one start node.
For a full beginner flow, see the Simple Assistant example. Scenario creation flow Shown at 1.5x speed.

​
Edit an existing scenario

​
Add another node

  1. Go to the Scenarios table.
  2. Click your target scenario.
  3. Click Edit in the bottom-left corner to enter edit mode.
  4. Click Add Node.
  5. Enter a node name:
    • Planning Phase
  6. Add a task message:
Help the user plan their project on the Akapulu platform

Use your Akapulu RAG tool to get information on how Akapulu works

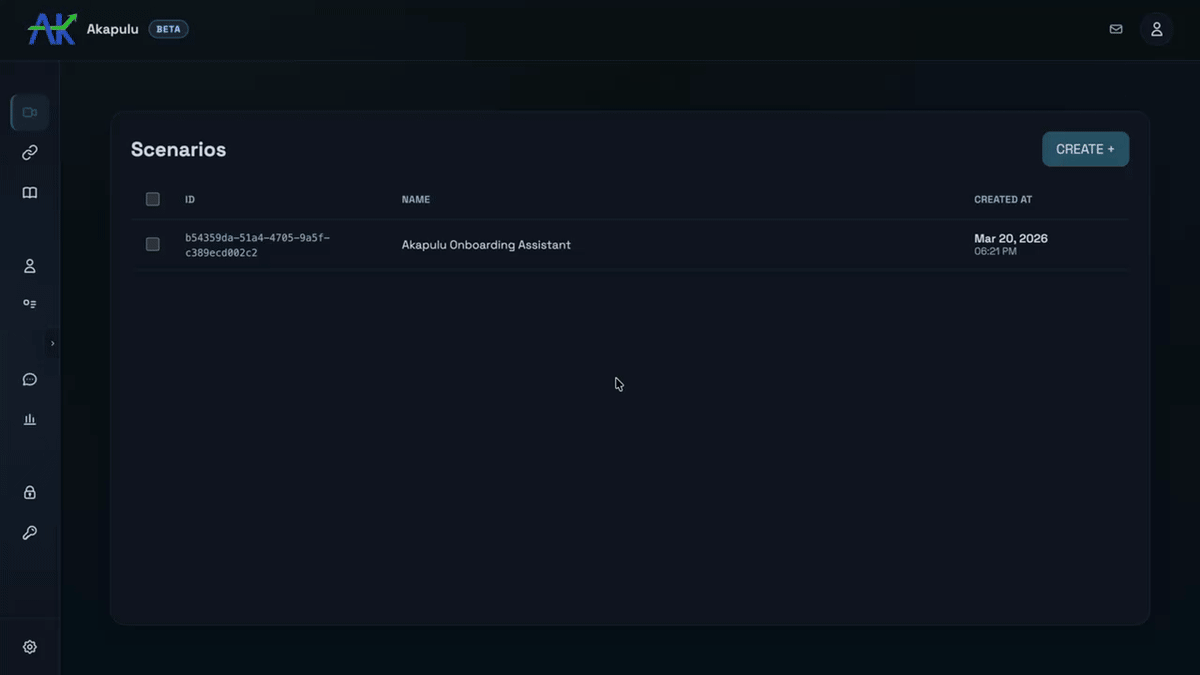

Editing a scenario in edit mode Shown at 1.5x speed.

​
Add tools and transitions

​
Add a RAG tool and a transition function

You can add tools directly to each node.
  1. Create a Knowledge Base.
  2. Open the node you want to update.
  3. Click + Add function at the bottom of the node.
Add function in the Planning Phase node
  1. In the pop up modal, open the RAG Tool tab.
RAG Tool tab in the pop up modal
Throughout the Akapulu platform and docs, the terms corpus and knowledge base are used interchangeably.
  1. Select your desired knowledge base, then create the RAG function with:
    • Name: Akapulu_RAG
    • Description: Access information on the Akapulu platform
  2. In the Greeting node, click + Add function.
  3. In the pop up modal, open the Transition Tool tab.
Transition Tool tab in the pop up modal
  1. Create a transition function with:
    • Name: transition_to_planning_phase
    • Description: Once you have gathered enough information on what the user wants to build with Akapulu, use this tool to transition to the planning phase
  2. Drag the probe on the right side of transition_to_planning_phase to the Planning Phase node to set the transition target.

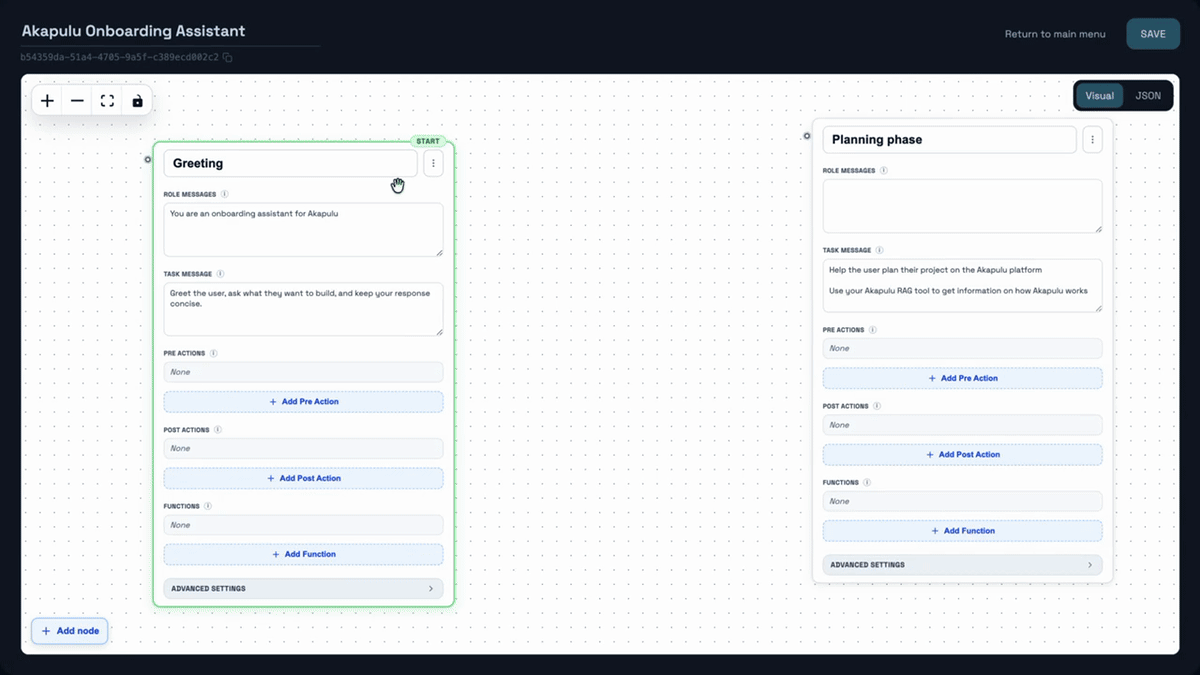

Drag the transition probe to the target node See gif below Adding tools to a scenario node Shown at 1.5x speed.

​
Completed scenario example

You have now built a simple scenario. Scenario Overview This scenario starts in Greeting, where the assistant asks open-ended questions about what the user wants to build with Akapulu. Once project scope is clear, it calls transition_to_planning_phase and moves into Planning Phase, where Akapulu_RAG is available to pull platform information and help shape the user’s plan.

​
Next scenario guides
