Endpoints let your assistant call external services during a live conversation. Use them when a scenario needs to trigger backend actions such as CRM updates, scheduling, order lookups, or workflow events. This guide covers endpoint setup and attachment in both JSON and UI flows.

​
What an endpoint includes

Each endpoint has:
  • name: tool label shown in Akapulu
  • url: destination HTTP URL
  • headers: request headers
  • body: JSON payload
Akapulu invokes your endpoint with the POST method and a JSON-encoded body. Content-Type: application/json is sent by default; add Content-Type under Headers if you need a different value.

​
Host your endpoint as an HTTP server

Your endpoint URL must point to a running HTTP server route that can accept POST requests from Akapulu during live conversations.
  • Use a valid https:// URL for production.
  • The route must be publicly reachable from the internet.
For authentication, create a secret and pass it in your request Headers using {{secret.*}}.

​
HTTP transition behavior

HTTP endpoint tools support two transition patterns:
  • Simple transition: set transition_to on the HTTP function. If the endpoint returns a successful 2xx response, the flow transitions to that node.
  • Dynamic transition: set allowed_next_nodes on the HTTP function. After a successful 2xx response, Akapulu reads the returned JSON field next_node and transitions to that node.
For dynamic transitions:
  • the endpoint response must be a JSON object
  • it must include next_node
  • next_node must be a string
  • next_node must match one of the nodes listed in allowed_next_nodes
  • every entry in allowed_next_nodes must be a valid node name in the scenario
If an HTTP endpoint is unreachable or returns a non-2xx response such as 400 or 500, the flow does not transition to any node. If dynamic transition is configured and the response is missing next_node, returns a non-string next_node, or returns a next_node that is not in allowed_next_nodes, the tool call is treated as an error and the flow does not transition.
Tool call results are included in conversation transcripts. For failed HTTP tools, Akapulu stores a sanitized error message rather than the raw upstream error text.

​
Create an endpoint

  1. Go to akapulu.com/endpoints and click Create Endpoint.
  2. In the Setup tab, enter:
    • endpoint name
    • destination url
    • example:
      • name: Book Appointment
      • url: https://api.yourcompany.com/v1/book-appointment
  3. In the Headers tab, add a JSON object for request headers.
    • example:
{
  "Content-Type": "application/json",
  "Authorization": "Bearer {{secret.crm_token}}"
}
  1. In Body, add a JSON object for the request payload.
    • example:
{
  "patient_id": "{{runtime.patient_id}}",
  "date": "{{llm.date:Appointment date in YYYY-MM-DD}}",
  "time": "{{llm.time:Appointment time in HH:MM}}"
}
  • Note: You can use template variables in headers and body. Learn more in Templates and Variables.
  • Note: Secret variables are allowed only in endpoint headers. Secret variables are not allowed in request bodies, role_instruction, or task_instruction.
  1. Save the endpoint and copy its endpoint ID from the details view.
  2. Attach the endpoint to your scenario using one of these methods:

​
Attach via JSON

Use your endpoint ID in node JSON: In nodes_json, endpoint references live inside each node object under:
  • functions[].endpoint_id for HTTP tools
For HTTP tools, functions[].name is the tool-call name presented to the LLM. Use clear action names like book_appointment, create_lead, or lookup_order. Example shape inside nodes json:
{
  "nodes": {
    "<node_name>": {
      "functions": [
        {
          "type": "http",
          "name": "function_name",
          "description": "Describe when the assistant should call this endpoint.",
          "endpoint_id": "<YOUR_ENDPOINT_ID>"
        }
      ],
      "task_instruction": "<TASK_INSTRUCTION_PLACEHOLDER>"
    }
  }
}
Simple transition example:
{
  "name": "book_demo",
  "description": "Create a demo booking and move to the confirmation node.",
  "type": "http",
  "endpoint_id": "<YOUR_ENDPOINT_ID>",
  "transition_to": "Booking Confirmation"
  // On a successful 2xx response, the flow transitions to "Booking Confirmation".
}
Dynamic transition example:
{

  "initial_node": "Route Request",

  "nodes": {

    // Starting node
    "Route Request": {

      "task_instruction": "Figure out what kind of help the user needs, then call the routing endpoint.",
      "functions": [
        {
          "name": "route_demo_request",
          "description": "Choose which node should handle the request next.",
          "type": "http",
          "endpoint_id": "<YOUR_ENDPOINT_ID>",

          // Akapulu will only transition to one of these connected node names.
          "allowed_next_nodes": ["Pricing Help", "Technical Help", "General Overview"]

          // The endpoint must return JSON with "next_node" set to
          // "Pricing Help", "Technical Help", or "General Overview".
          // If "next_node" is missing, not a string, or not in allowed_next_nodes,
          // the tool call is treated as an error and the flow does not transition.
        }
      ]
    },

    // One allowed dynamic destination.
    "Pricing Help": {
      "task_instruction": "Answer questions about plans, pricing, and billing."
    },

    // Another allowed dynamic destination.
    "Technical Help": {
      "task_instruction": "Answer questions about integrations, APIs, and implementation details."
    },

    // Another allowed dynamic destination.
    "General Overview": {
      "task_instruction": "Give a broad overview of the product and help the user decide what to explore next."
    }
  }
}
Example response handler:
# Example: https://my-endpoint.com

from fastapi import FastAPI

app = FastAPI()

@app.post("/route-demo-request")
def route_demo_request():
    return {
        "status": "success",
        "message": "Send this user to pricing.",
        "next_node": "Pricing Help", # Akapulu will read next_node to transition
    }
When creating HTTP Endpoint:
  • set the endpoint url to the deployed route for your handlerhttps://my-endpoint.com/route-demo-request
  • Akapulu will call your endpoint and return the result to the conversation flow
  • JSON response will be added to llm context and will transition to the “Pricing Help” node

​

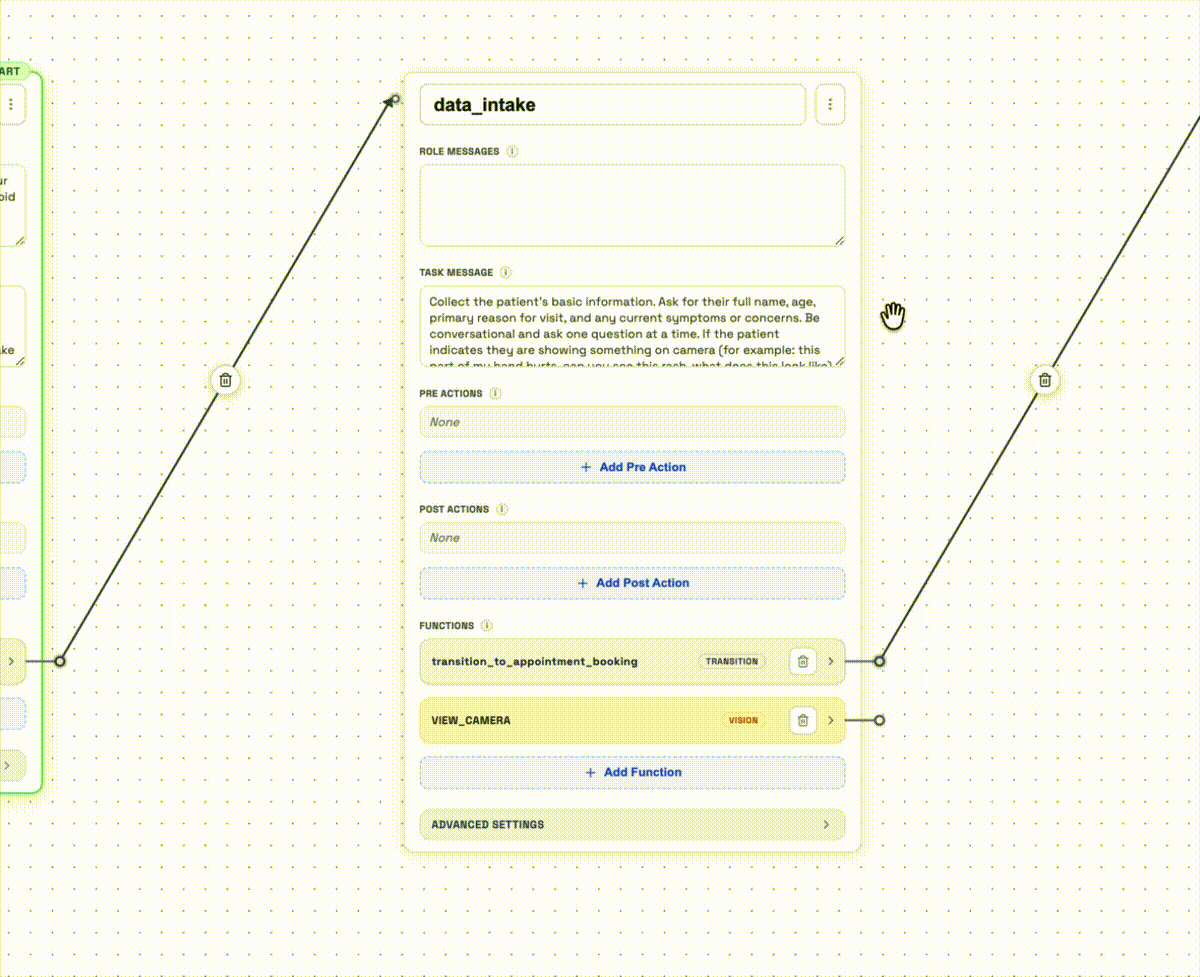

Attach via UI

​
HTTP function tool (LLM-invoked)

Use this when you want the model to decide when to call the endpoint during a node:
  1. Open your scenario and go to the node where you want to add the tool.
  2. Click Add Function.
  3. Select the HTTP Endpoints tab in the modal.
  4. Choose your endpoint by name.
  5. Enter a clear function name and description. This is the tool metadata shown to the model when it decides whether to call the endpoint.
  6. Use the transition toggle at the bottom of the modal to choose Simple or Dynamic transition behavior.
  7. Configure the transition path for the endpoint:
    • For Simple, drag the function probe to the single next node you want to enter after a successful tool result.
    • For Dynamic, drag the function probe to each node you want to allow. Each connected node is added to allowed_next_nodes.
      For dynamic routing, the endpoint must return JSON with next_node set to one of the node names in allowed_next_nodes.
This attaches an HTTP endpoint as a function tool the LLM can call within that node. Endpoints can be reused across multiple scenarios.

​
Next step

After creating an endpoint, configure variables in headers/body using the Templates and Variables guide.
